perfume filling machine semi automatic liquid filler equipment vacuum filler 4 filling nozzles for g

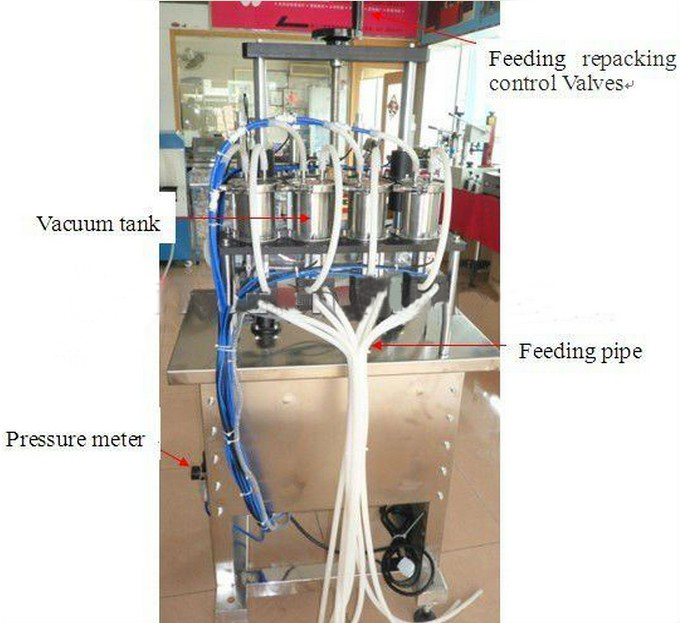

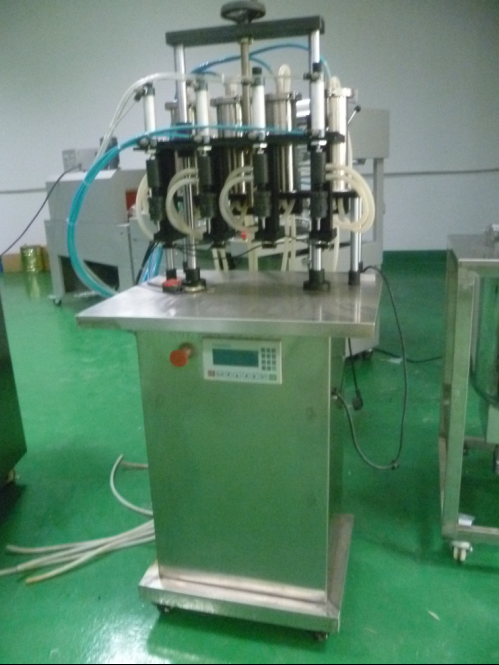

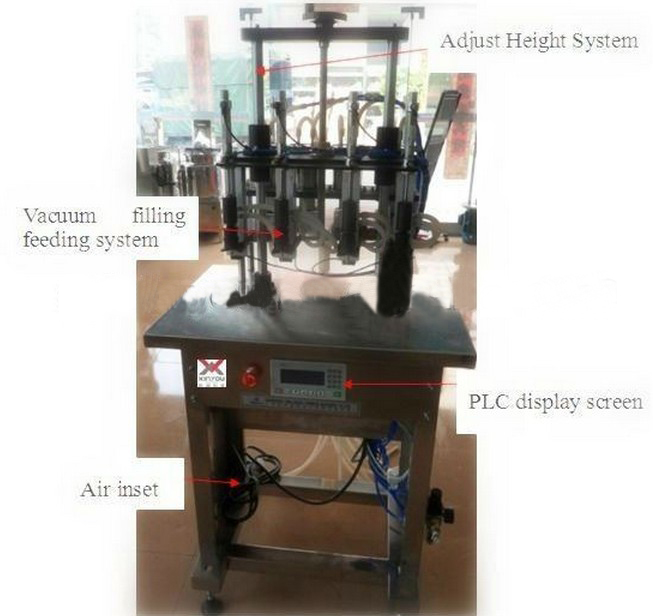

Model YX-V04 Perfume filling machine is used for filling floral water, perfume and other water-bassed materials. The machine adopts negative pressure and fjixed liquid surface type filling. It includes two kinds of specification such as four-head and six-head. Explosion-proof type procucts can be provided according to user requirements.



Features from perfume filling machine 4 filling nozzles :

 1.Caster wheels are installed for convenient movement.

2.Negative pressure liquid sucking filling. The filling volume is measured according to liquid level.

3.The parts and table surface that contact the materials are all made of 304 stainless steel.

4.Suitable for glass bottles, or plastic bottles whose body will not be easily deformed after vacuum extracting.

5.Convenient adjustment, operation and maintenance.

Basic parameter of semi automatic perfume filling machine for glass bottles :



Model	YX-V04
Power	0.3(kw)
Filling volume	20~2000(ml)
Bottle height	≤250(mm)
Bottle mouth diameter	≤20mm
Filling accuracy	0.3(%)
Working principle	Vacuum
Production capacity	40~80 bottles/min
Automaticity	Semi-automatic
Dimensions	70cm*60cm*165cm
Weight(kg)	70kg

Filling samples from Vacuum filling machines semi automatic 4 filling heads

Wooden case packaging for vacuum filling machine semi automatic before shipping

Videos for testing run of vacuum filling machine semi automatic for our Saudi Arabia customers
