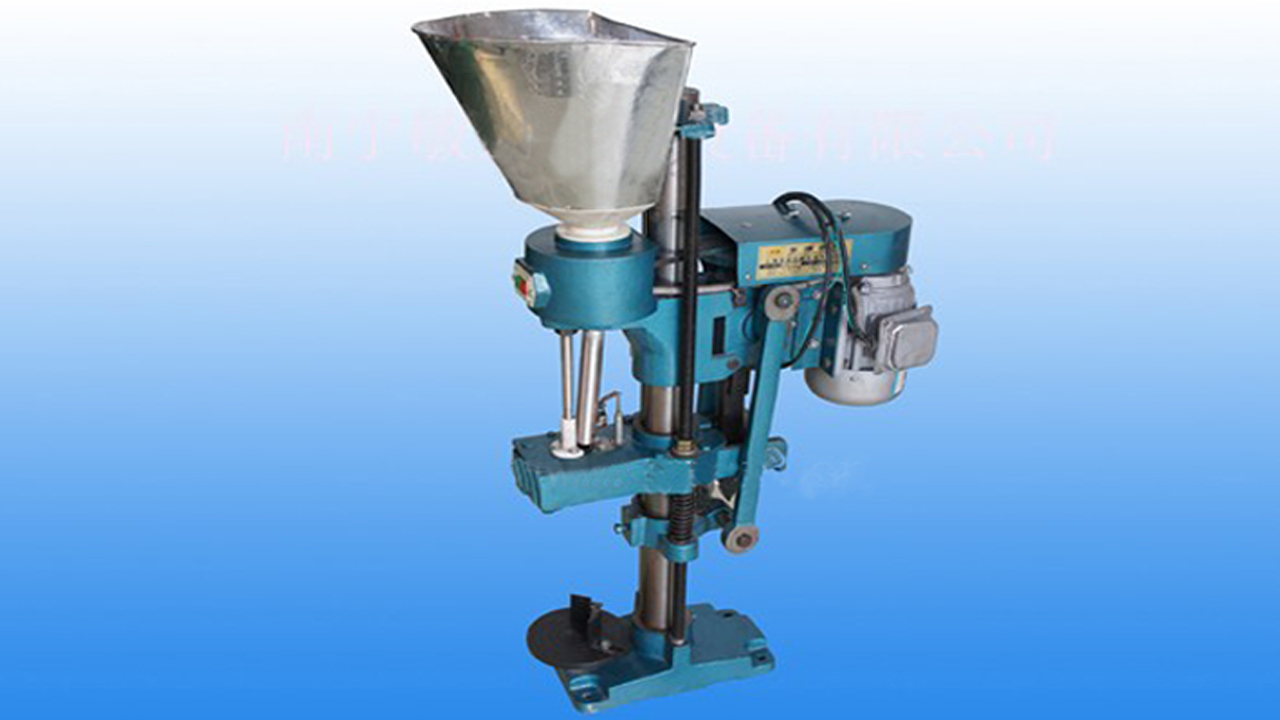

red wine glass bottles semi automatic electric corking machine corker corks inserting sealing equipm
Model YX-WC02 Red wine glass bottles semi automatic electric corking machine corker corks inserting sealing equip Rotwein Siegelmaschine halbautomatisch designed and manufactured by our engineer team in cosmetic&food&pharma making and packaging machinery is widely used in the daily chemical industry likeModel YX-WC02 Red wine glass bottles semi automatic electric corking machine corker corks inserting sealing equip Rotwein Siegelmaschine halbautomatisch and such like.We as a famous manufacturer moreover can design and produce the packaging machine according to the special requirements from customers.
The semi-auto bottle corker is suitable for sealing bottle straight cork in bottle wine, bottle drink, juice wine factory. The machine is set with cork sending system. It is operated by manual help to send the bottle below sealing head. It is perfect in performance, reliable in operation and easy in maintenance. It adopts the high quality of stainless steel material, has long life span.
Working process:
Manual put the bottle on the bottle pedestal to adjust the press head close to the bottle mouth, then manual put the switch, the press head will press the cork into the bottle, then product is finished.
There are mainly three kinds of wine bottles corking machines which get assorted with three models as follow: 1. electric bottles corker equipment;
hand-operated corks pressing inserting machines; 3. Simple handles corking machine with stent.
TYPE YX-WC01 Stopper 1
Production capacity(b/h) 2500(can adjust)
Suitable bottle size
A: diameterφ60~φ90mm (Need to replace part zero parses) B:bottle height250~370mm(can adjust)
Dimension(mm) 1270×1060×2450
cork length(mm) 35~44
Cork diameter(mm) φ20.5~φ24
Weight(kg) 800
Electric voltage (V) 220/380
The whole machine power (KW) 0.75
Cap size(mm) 15-70
Bottle body diameter(mm) Φ35-Φ130
Bottle body height(mm) 150-370
