Negative perfume filling machine 8heads 10 filling nozzles rotary perfume filler cosmetic liquid bea

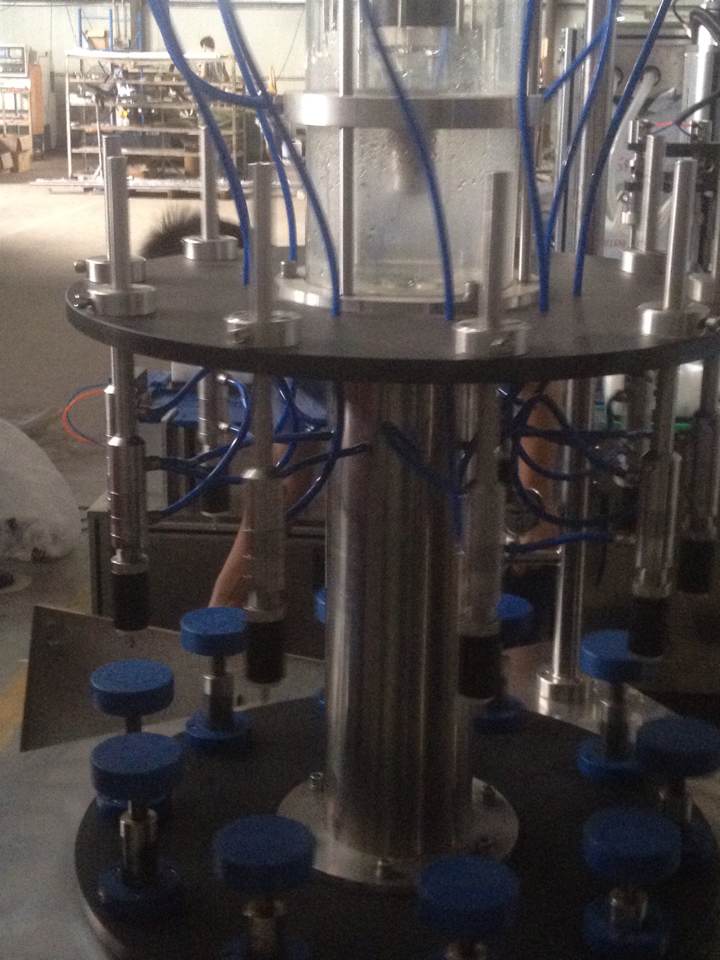

10 Heads perfume filling machine semi automatic which is displayed in pictures and video as below:
Instruction on Model YX-PF perfume filling machine rotary semi automatic:
Stainless Steel 10 Heads Perfume Filling Machine in Promotion is the NEWEST Machine ,which original manufacture in Swiden ,and also produced in France ,now in China ,
Firstly mananufactured by us ,very very good function ,very popular in Europe Parfum Factory .
Advantages:
YX-PF Series Perfume Filling Machine is used for filling floral water, perfume and other water-based materials.
This machine adopts vacuum type filling and fixed liquid level type filling, thus avoiding the different levels caused by the thickness of each container bottom.
The machine is with 8/10 heads filling, and rotary type filling, which has speeded up and meanwhile saved a lot of spaces.
The filling nozzle number can be customerized, like 6 heads, 8 heads, 12heads etc.
The vacuum perfume filling machine also with a recycle system, which saves a lot of time and labor tensity
Technical parameter of perfume filling machine multiheads semi automatic:
Model | YX-PF08 | YX-PF10 |
Production capacity | 20-40bot/min | 20-50bot/min |
Filling Volume | 5-1000ml | 5-1000ml |
The use of bottles of body height | ≤250mm | ≤250mm |
application of bottle diameter | ≤Φ90mm | ≤Φ90mm |
application of bottle diameter | ≥5mm | ≥5mm |
Supply voltage | 3/N AC380V/220V | 3/N AC380V/220V |
video of vacuum perfume filling machine glass bottles vacuum filler model YX-V04 semi automatic
Characteristic
♦Negative pressure suction fluid filling,product filling quantity to liquid level height is the metering method.
♦Equipped with casters,convenient to move.
♦And material contact stainless steel 316L,mesa with 304 stainless steel material
♦Suitable for glass bottle, or vacuum bottle after is out of shape not easily plastic bottles.
♦Adjustment,operation and convenient maintenace
Apart from the 8/10 heads perfume filling machines there is also semi automatic 4 heads simple perfume filling machine
for glass bottles .Videos in display as below:
Packaging pictures about our machine exported
Guarantee: for all the machine, it claims three years for guarantee.(Excluded from the warranty are problems due to accidents, misuse ,
misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also
training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country)
should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.
After-sales service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
