perfume making machines

fully automatic perfume liquid freezing filter tank integrated with bottling cartoning overwrapper e

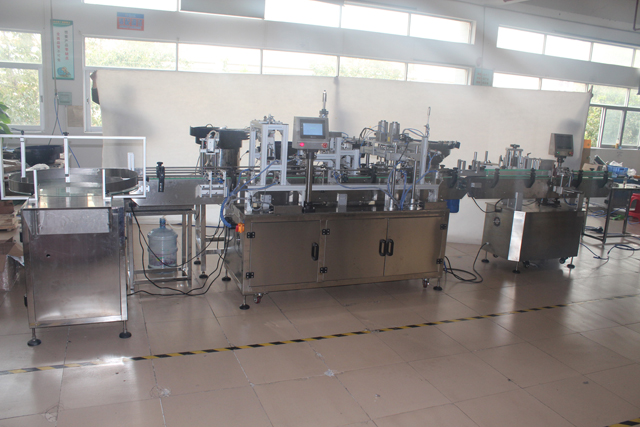

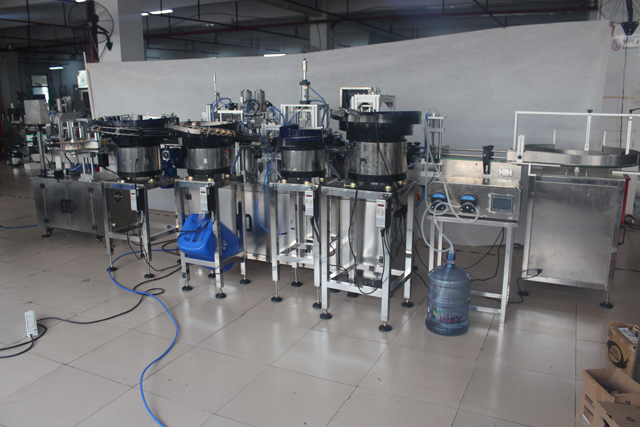

In the video it contains the machines concerned with perfume cosmetic liquid filling bottling part; The machines are given respectively:
1.Model YX-500L perfume freezing tank; 2.model YX-100G&40G perfume filling capping labeling machine;3.model YX-CP100 boxes cartoning machinery;4.Model YX-99 overwrapping machine;

The basic parameter of linear type perfume filling machine:

Model YX-100G
Filling nozzle: 2pcs capping head:1pcs
Filling volume:2ml-300ml; Viscosity of filling materials: ≤5000cps
Dimension of the whole production line:6000mm*1800mm*1700mm（L*W*H）
weight about:  970 KG
supply voltage: 220V 50HZ 1PH
supply air pressure: 4-7kgf/cm2
capacity: about 15-20pcs/min(more or less based on bottles)
Power supply 3.25KW
Current: 9.2A
Operator needed: 1 only enough
