Packaging machinery

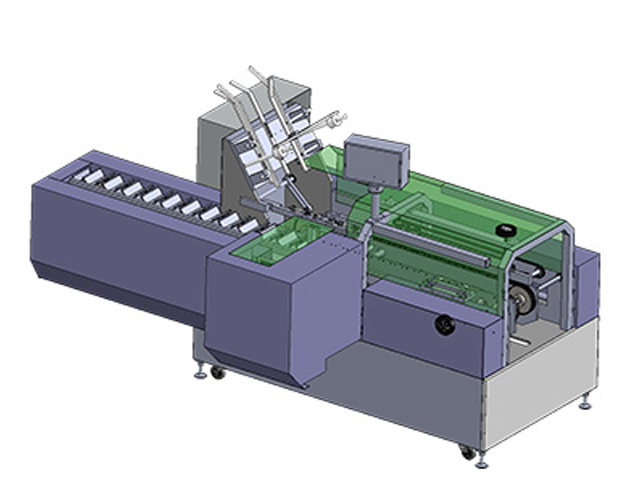

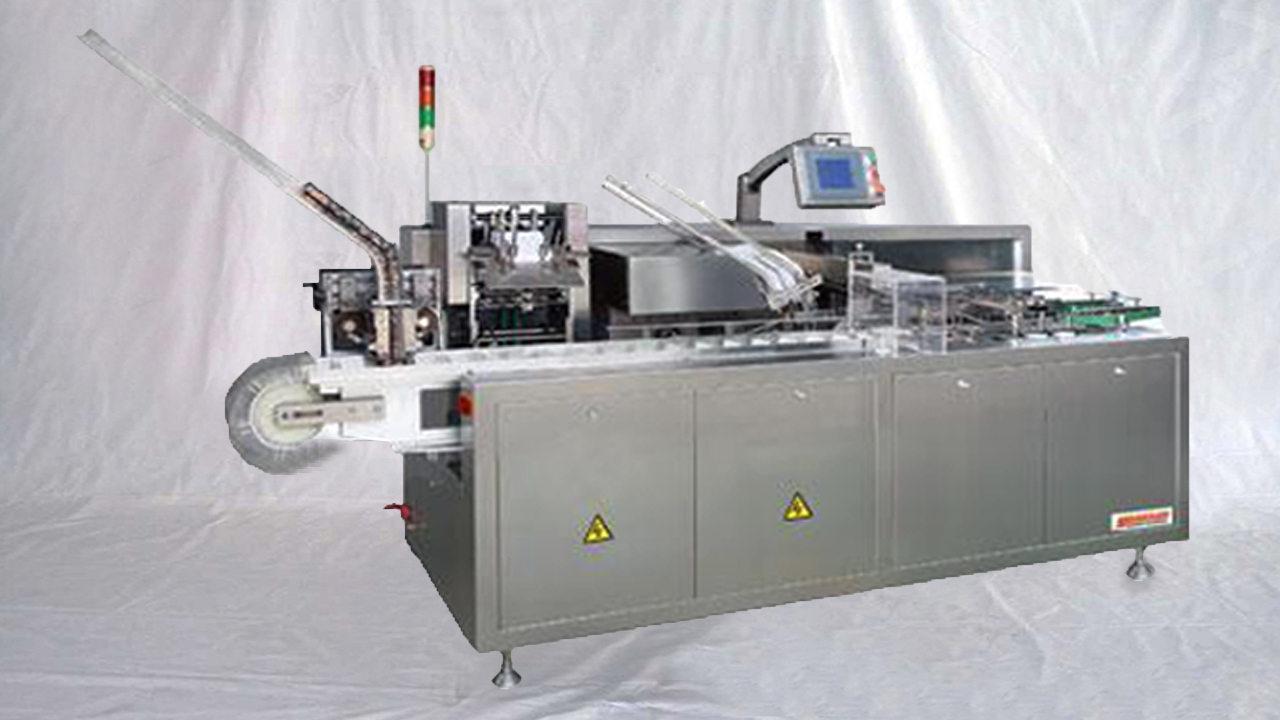

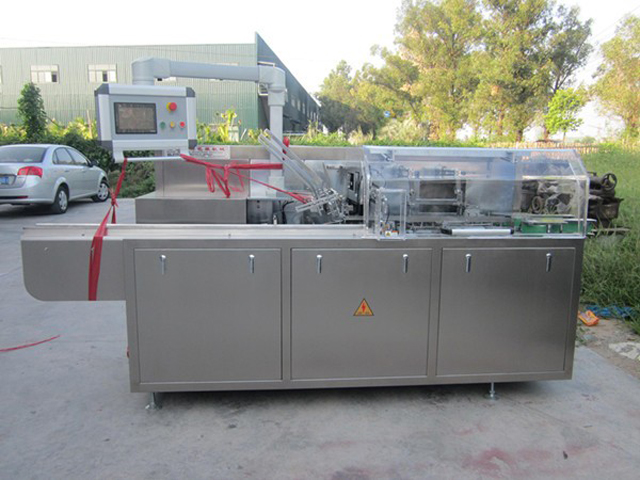

Oral liquid bottles feeding automated boxes cartoning packaging Botellas orales máquina de boxeo

This is mainly used in medicine, food, health care products, cosmetics, audio-visual products, and other industries square exterior decoration items boxed packaging. Such as kit, gum, health products, tea, sugar, condoms, rubber, mosquito coils, cigarettes, tape, VCD (CD) CD, playing cards, transparent soap, square battery, floppy disks, etc. play a security, the role of moisture, and improve product quality, increase product added value. The machine can use in the production line, work with the carton packing machine.

basic parameter of model YX-CP100 Oral liquid bottles feeding automated boxes cartoning equipment medical packaging Botellas orales máquina de boxeo:
model YX-CP100
Encasing speed 30-120 case/min
Box Quality requirement 250-350g/m*m
Dimension range (L× W× H) (50-180)mm* (30-85)mm* (15-50)mm
Leaflet
Quality requirement 50-65g/m²
Unfolded leaflet specification L× W (80-300)mm*(70-210)mm
Folded leafilet specification(1-4)*(L× W) (70-210)mm*(20-40)mm
Compressed air Working pressure 0.5-0.7mpa
Air consumption 120-160L/min
Power supply 220V 50HZ
Motor power 1.5kw
Machine dimension(L× W× H) 3200mm* 1200mm* 1900mm
Machine weight 1500kg

Characteristics of soap boxes cartoning equipment fully automatic:
1.It adopts PLC control, frequency inverters control speed, electrical element are all used international famous brand;
2. Adopt human-machine interface
3.Automatically displaying device for malfunction, cartoning speed and finished products counting;
4.Automatic check the neglected cartoning and waste picked out for products and leaflet
5.It is easy to understand and operate, work stably.
6.It doesn’t inhale leaflet without products and dosen’t inhale box without leaflet.
7.It idles and doesn’t push products if there is no products or products supply does not reach the designated position. Machine will work automatically with reinstatement of products supply
8.It stops automatically if there is no box or continuous no leaflet.
9.It is easy to replace different products.
10.The machine can be used alone,besides,it can be linked to work with blister packing machine,bottle filling machine and heat shrink packing machine.

After-sales service on model YX-CP100 Oral liquid bottles feeding automated boxes cartoning equipment medical packaging Botellas orales máquina de boxeo:
Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse,misapplication, storage damage,
negligence, or modification to the Equipment or its components.
ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install
and test the machine and also training your worker to operating the machine (The time of train depend on you worker).
The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.
After-sale service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible.The cost should be in your account.(as above).
