horizontal type flow wrapper equipment pillow type packaging for bagging biscuit tapes nails chochol

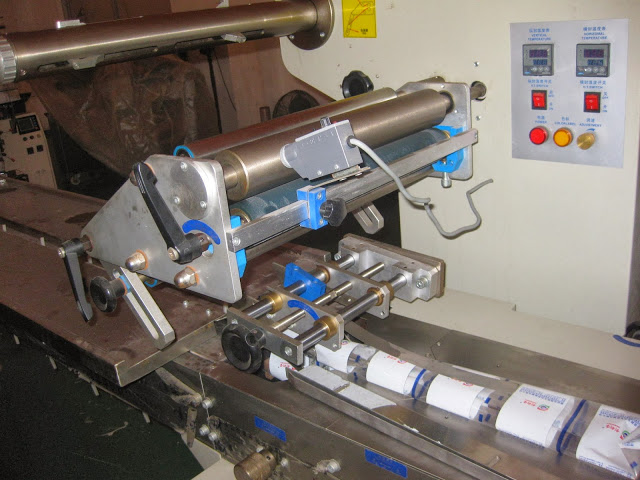

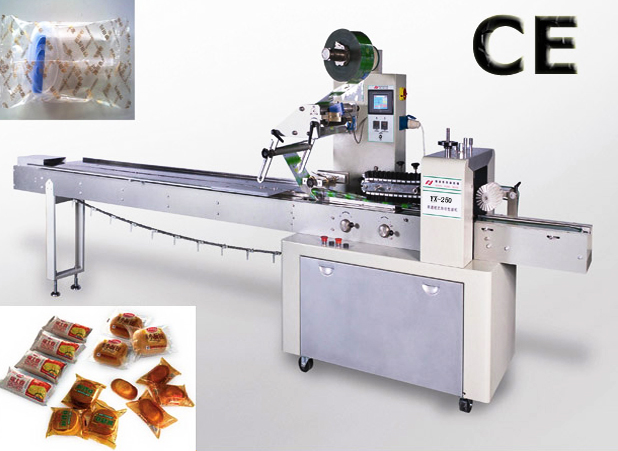

YX-250 Model Multi-Functional Pillow Packing Machine is fully automatic horizontal packaging machine.
Welcome to contact us for more details, looking forward to having the honorable opportunity to provide our service to your esteemed company in the near future.

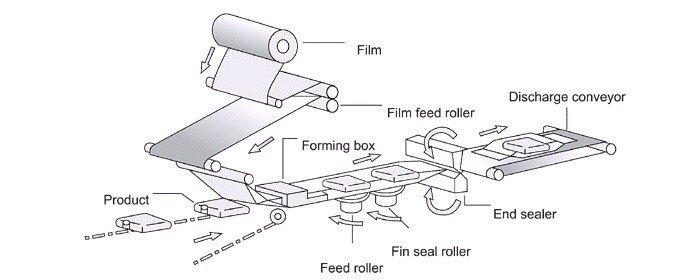

Method of work of the horizontal packaging machines (hffs)

The horizontal packaging machines are used for the forming, filling and sealing of elastic packages from the following types: 3 side sealed sachet, 4 side sealed sachet and doypack package. The method of operation for this type of machines is the following:
1. The machine is loaded with a roll of film, which will be used to form the package. The most widely-used materials are thermo-sealable films with single or double layers, such as PP-PP, PP-PE, PA-PE, PE-PET, BOPP, CPP.
2. The film is folded in half and is directed in a horizontal position, consequently passing through a variety of mechanisms, which function is to close the vertical seals, form the bottom of the package and apply eventual extras to the package (e.g. a zipper for closing and opening the package).
3. The formed sleeve is filled via a dosing device and after that the package is sealed from above.
4. During the last stage, the ready package is separated via a cutting mechanism and is placed on an output belt for the ready production.

Packing Scope of Horizontal Pack Machine:

1. Food Types: biscuits, cakes, food, bread, cake, pastry, candy, chocolate, baked

steamed bread slice, Hamburg, Tangyuan, dumplings, small steamed buns frozen food,and so on

2, Medicine Types: masks, medicine plate, eye drops, enema syringe,

pregnancy, holding, medical supplies, medical equipment and so on

3, Hardware Type : aviation supplies, hardware accessories,hardware,hardware tools, metal jewelry, metal parts, hardware, small commodities,auto parts, parts, power

switch, metal zipper, metal bearings hinges, drawer rails, keys, small parts,ornament, handicrafts, sundry goods, toys, stationery, plastic products and so on.

4.Daily Life: disposable wipes,wet towels,towel, bath, soap,toothbrush,masks,spoon, hotel supplies, garbage bags, clean cloth, steel balls, paper plates, sponges, books and magazines,etc.

Specification of horizontal packaging machines:
Model: YX-250
Max film width: 250mm
Max capacity: 170PCS/min
Film thickness: 0.03-0.06mm
Packing width: 25-100mm
Packing height: below 40mm
Total power: 2.4kw 220V
Overall size(L*W*H): 4200mm*820mm*1265mm

Optional accessories

1:Date Coder 2:Touchable Screen 3:Automatic Punching Device
4:Alternative sealing patterns and notch 5:Auto labeling device 6:Deoxidizer chute device
7:Gas flushing device 8:Alcohol spraying device 9:Auto feeder

Performance and Ferture

This machine adopts PLC for main control, hence steady in performance and easy to operate.
Human-machine interface in Chinese(English), making the setting and save easy and quick.
Main motor equipped with high quality AC frequency converter which makes step less speed changing.
High accuracy photoelectric detection tracing system with automatic compensation in both directions for reliable accuracy.
Non-stage transmission used for the adjustment of bag length. which makes machine much more durable, stable and precise.
The conveying chain can be adjusted without stopping the machine, convenient and sensitive.
Adjustable end sealing structure makes the sealing more perfect without cutting on the bags.
The complete machine shell is made of high quality stainless steel.
This machine can be equipped with nitrogen filling device and hot encoder. The printing position can be opted optionally.

Packaging samples from horizontal pillow type FFS packing machines

Wooden case packaging for horizontal packing machine model YX-250

After sales service for packaging machinery YX series

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication,

storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to

operating the machine (The time of train depend on you worker).The expenses (air ticket ,food , hotel,the travelling fee on your country)

should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
