Moveable pneumatic high shear dispersing equipment fixed high speed disperser machinery cream lotion

Moveable pneumatic high shear dispersing equipment fixed high speed disperser machinery cream lotion

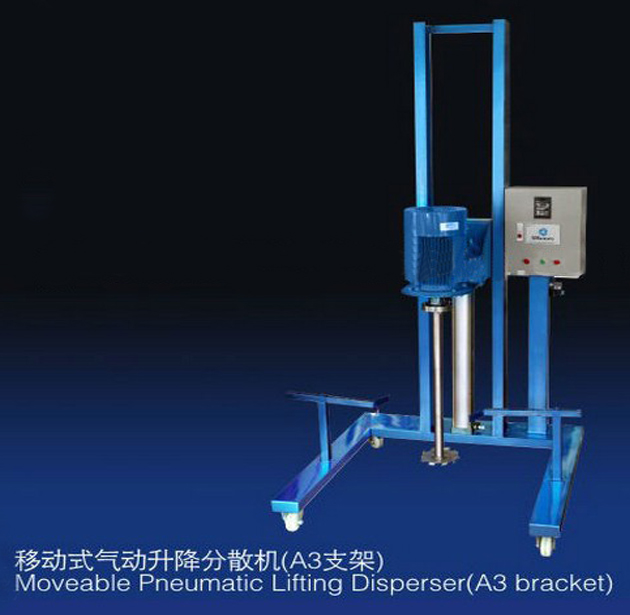

pneumatic lifting moveable high shearing disperser in cosmetic food&pharmaceutical industry  Moverable high shear disperser/homogenizer for emulsion   cosmetic high shear dispersing equipment

Motor runs with full speed and drive main shaft, rotate emulsifying vane in the emulsifying groove through main shaft to make the liquid in the bucket sucked into ring groove by guide vanes at both sides through up and below end of groove, vane is rotated circularly and quickly with main shaft as center; cut and crush high frequency mightiness between emulsifying vane end blade and emulsifying frame continuously, then recur to vane high speed acentric rotating to push out, circle mixing continuous and finish homogenizing emulsifying treatment in very short time.

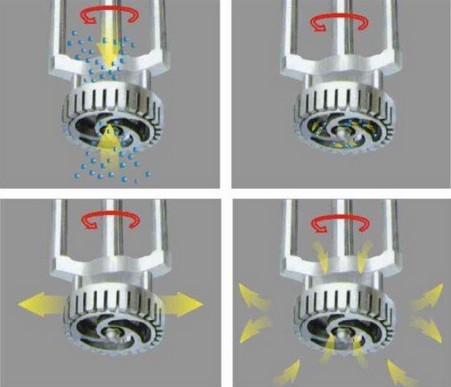

Working Process of high shear dispersing equipments:

working principle for working of shear disperser.jpg

The cutting wheel on main shaft drove by running motor imposes the material a high centrifugal speed.

Subject to the cut off, lash and mixing process caused by the interaction between the running cut wheel

and the fixed cut sheath,the materials were cut off in the cut slot.All the processes of crushing, emulsifying

can be accomplished within a short time.

Applicance:

high shear despersing hydraulic.jpg

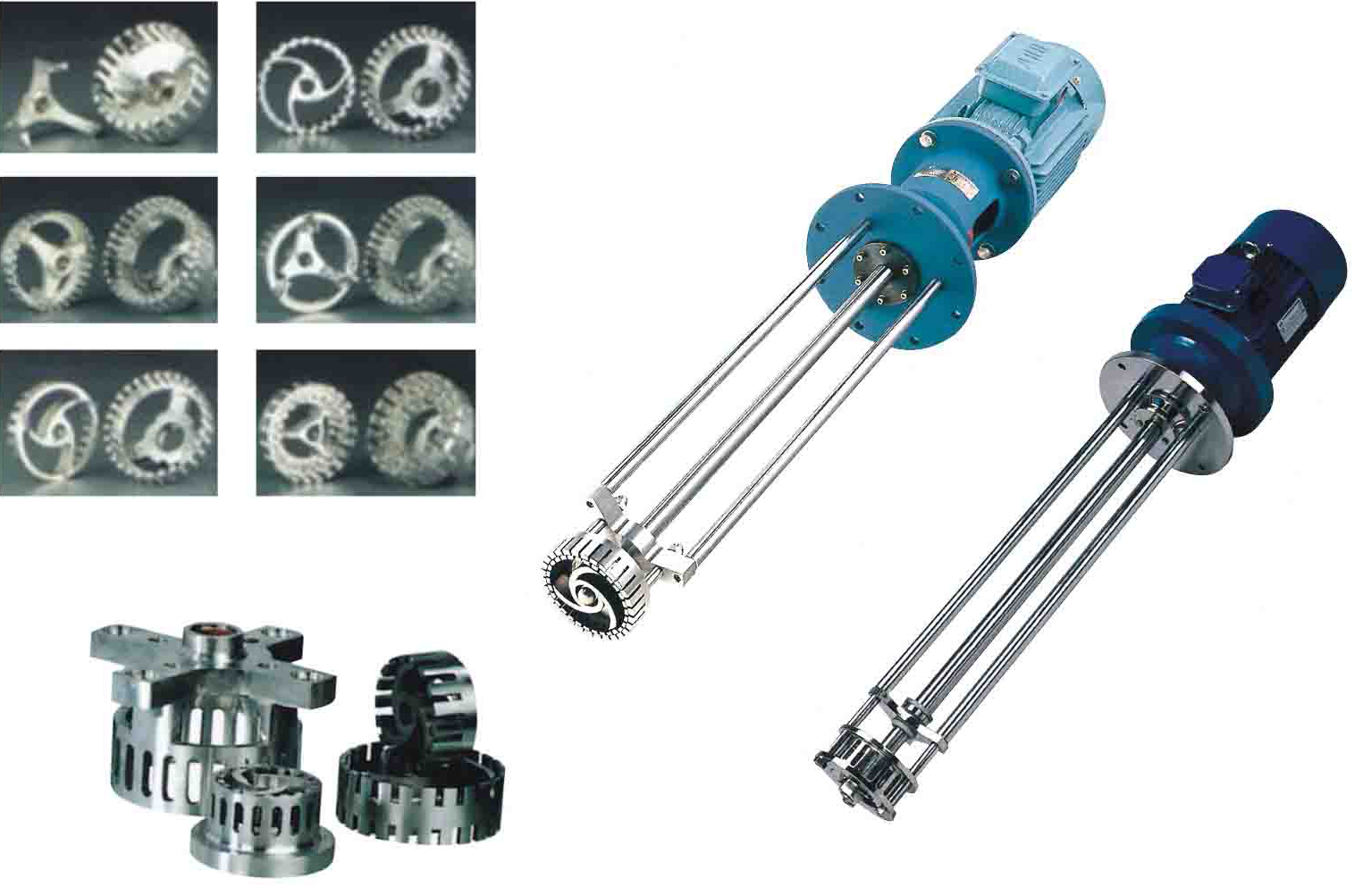

This machine is used in homogenizing disperse and latex manufacture of medium and low viscosity emulsifying liquid and suitable to most of recipe requirement. Special rotor and stator bring out strong shearing.Rubbing.strike and convection to make oil water emulsifying grain reach stable condition1-2um).

Safety operation notice:

 high shear despersing hydraulic.jpg

1)Mechanical length dimension of this machine is standard length, if

required, lengthen or shorten can be manufactured accordingly.

2)The best position of mechanical length is emulsifying groove and it is

best to go into 60% of effective liquid surface.

3)When choose emulsifying machine, here is reference:

capacity.viscosity.dealing time.reaction temperature.purpose. mail to

business department of our company.

4)Aquatic bearing of emulsifying machine adopts self-lubricated bearing

and it is forbidden to start machine when liquid is lower than

aquatic bearing to avoid damage of bearing.

5)Correct parameter accords with supplied practicality and if there is

any amendment, we will not inform in other way.

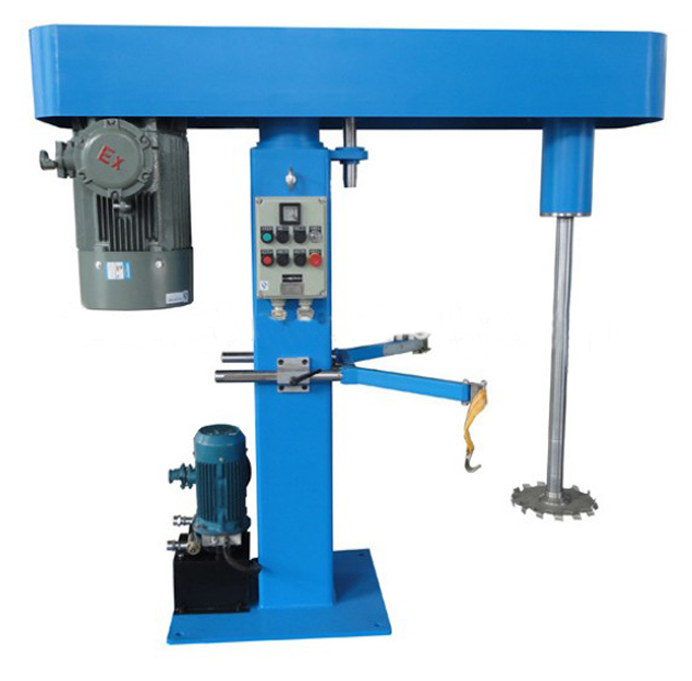

Specific example for 3KW portable pneumatic high shear disperser equipment

high shear despersing hydraulic.jpg



 Model

Power

Speed

Hydraulic pump

Capacity

Disc dia.

Stroke

Weight

 YX-1.5

 1.5kW

0-1440rpm

0.55kW

20-100L

 100mm

 500mm

350kg

  YX-2.2

 2.2kW

 0-1440rpm

0.75kW

50-150L

 150mm

 600mm

 400kg

  YX-4

 4kW

 0-1440rpm

0.75kW

50-200L

 200mm

 700mm

 450kg

  YX-5.5

 5.5kW

 0-1440rpm

0.75kW

80-250L

 200mm

 800mm

 600kg

 YX-7.5

 7.5kW

 0-1440rpm

1.1kW

100-300L

 250mm

 800mm

 700kg

  YX-11

 11kW

 0-1440rpm

1.1kW

100-400L

 250mm

 900mm

 750kg

  YX-15

 15kW

 0-1440rpm

1.1kW

100-500L

 300mm

900mm

 800kg

 YX-18.5

18.5kW

 0-1440rpm

1.1kW

100-800L

 300mm

1100mm

1000kg

 YX-22

 22kW

 0-1440rpm

1.1kW

150-1000L

 300mm

1100mm

1100kg

YX-30

 30kW

 0-1440rpm

1.1kW

200-1200L

 350mm

1100mm

1200kg

 YX-37

 37kW

 0-1440rpm

1.5kW

300-2000L

 400mm

1200mm

1300kg

YX-45

 45kW

 0-1440rpm

1.5kW

500-2000L

 450mm

1200mm

1400kg

 YX-55

 55kW

 0-1440rpm

1.5kW

1000-2000L

 500mm

1300mm

1500kg

 YX-75

 75kW

 0-1440rpm

2.2kW

2000-4000L

 550mm

1800mm

3000kg

Besides the Moveable high shear dispersing equipments there also is the fixed high shear disperser equipment,below is the basic

information for the equipment:

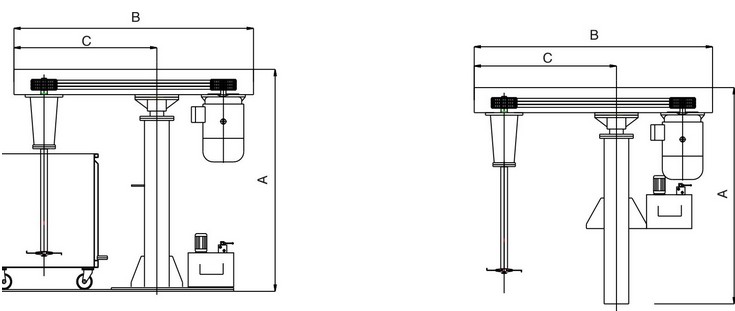

Drawing of single bearing high shear dispersing equipment hydraulic lifting disperser machines

pneumatic lifting disperser.jpg

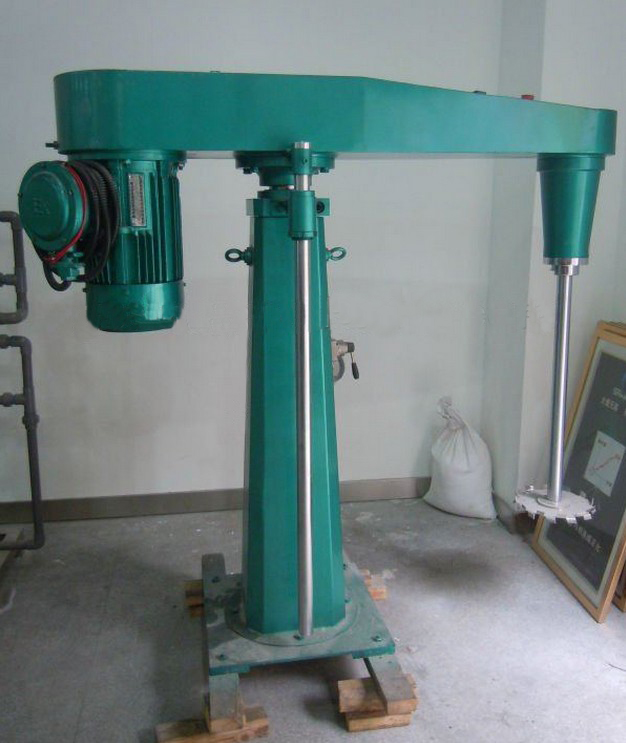

Pictures of single bearing high shear disperser homogenizer emulsifier fixed model

high shear despersing hydraulic.jpg

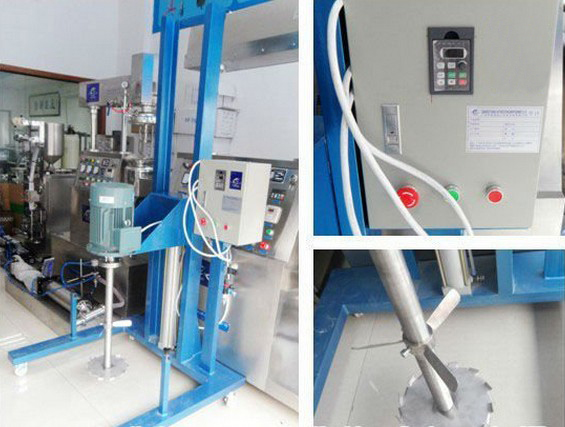

moveable disperser.jpg

Before one product in the food cosmetic or pharmaceutical industry it is often chosen to test it with laboratory equipment.

Below are the machines that is often operated in the Lab house by engineers .Herewith displayed:

1.5L-20L Laboratory homogenizer emulsifier equipment,Lab homogenizing machine

2.laboratory standard toothpaste production line exhibition mini processing line for toothpaste making

3.Lab High-Shear Emulsifier&laboratory emulsifier homogenizing machine small shear homogenizer

4.Viscometer for Newtonian fluid viscosity cosmetic&food Viskosimeter für newtonsche Flüssigkeiten

Final products samples of cream from high shear dispersing equipments:

high shear cream samples.jpg
