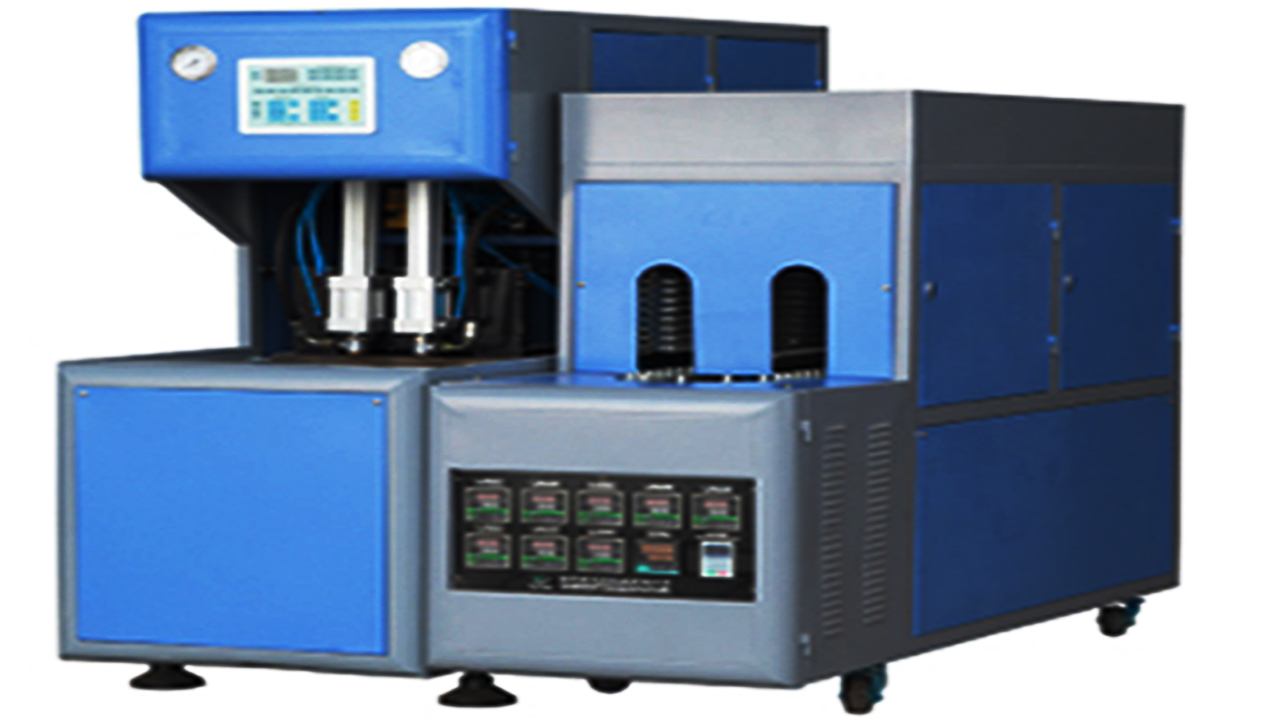

Instruction video of how to operate PET bottles blowing molding machine two Cavity how to connect wi

PET BOTTLES  Stretch Blow Moulding Equipment Machine de soufflage pour bouteilles en PET model YX-BL02 designed and manufactured by our engineer team in cosmetic&food&pharma making and packaging machinery is widely used in the daily chemical industry like two cavity bottles blower equipments and such like.We as a famous manufacturer moreover can design and produce the packaging machine according to the special requirements from customers.
Semi-Auto semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and bottles. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.

Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi-auto mode.
The machine is small with low investment, easy and safe to operate.
Two main parts:
1. Blower

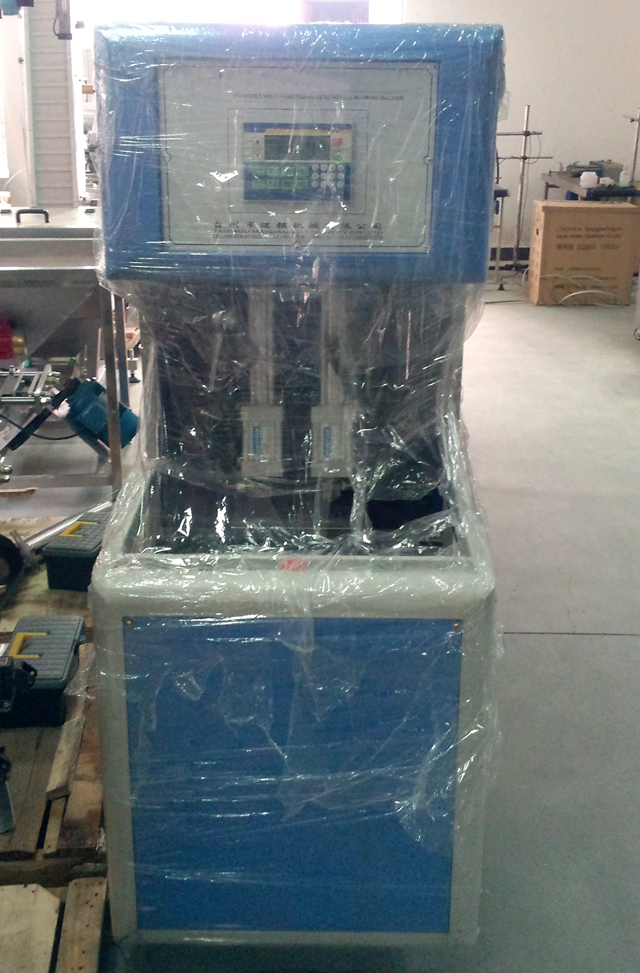

Model YX-BL02 Cavity Blowing Shaping MachineStretch Blow Moulding Machine is suitable to produce differently shaped bottles from PET tube. It is widely used to produce Mineral water carbonated drink, candy sauce, juice, medicine, cosmetic and oil bottle etc.
The machine adopts revolving infrared pre-heater. It ensures extremely even heating for PET preforms.

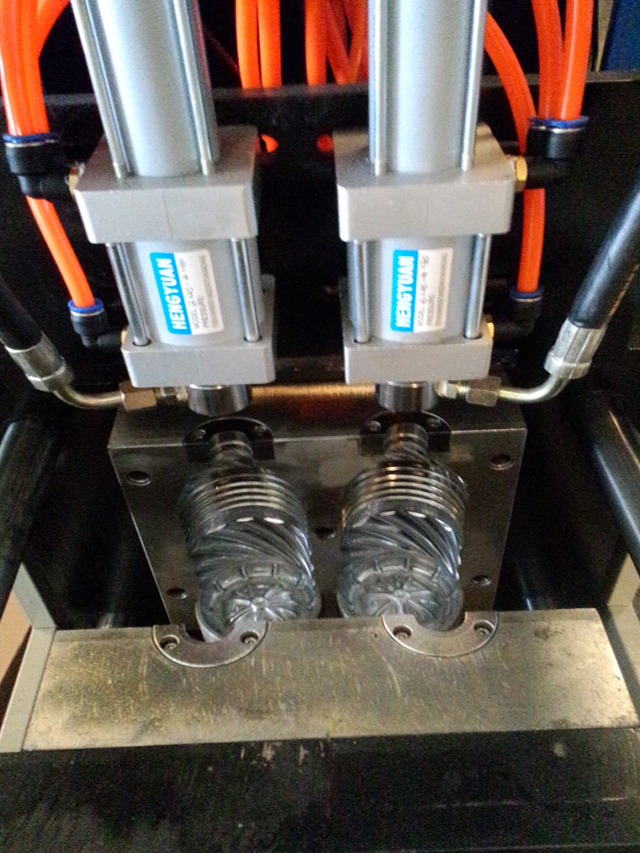

The machine uses mechanical-double-arm mould clamping which ensure the mould be closed tightly even in high pressure.
2. Heater

Rotating ovenRotary infrared heater heats pre-forms by moving pre-forms to pass through infrared heating area twice. by this method, heating is uniform and of high efficiency,
Infrared heating area is strictly divided into seven zones of A,B,C,D,E,F,G from up to down, Temperature requirements for all parts of pre-form are satisfied by controlling temperature of corresponding zones.
The feeding of pre-form for heating and taking away of heated pre-form shall be conducted manually which is simple and convenient.
Basic parameter of model YX-BL02 Instruction video tips of how to operate PET bottles blowing machine two Cavity how to connect wire Machine de soufflage pour bouteilles en PET:

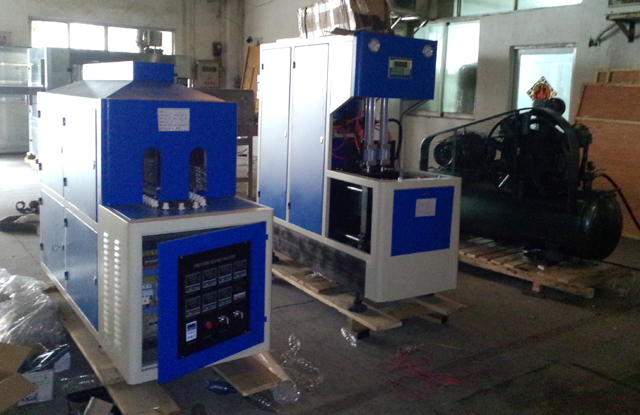

YX-BL02 including main body of bottles blowing, air filter,high pressure air compressor,moulds.
bottles volume: 50-25000ml
Application:Bottles PET oil bottle mineral gallon etc
Speed: 1000pcs per hour(according to 500ml bottles)
HP pressor: 24KW
Main machine Weight: 900kg
Voltage/Frequency: 380V/50-60HZ
Main dimension:1450*650*1750mm

Accessory parts for bottles blowing machines are listed as below:
1.HP air compressor;
2.Air Freezing Dryer;
3.Air Filter;
4.Mould water Chiller;
Our Factory since 1992 has been manufacturing the cosmetic&food making and packaging machinery.In these field we have the experience rich enough to solve the questions encountered by our customers from both home and abroad.For more information about various high quality machinery like model YX-BL02 Instruction video tips of how to operate PET bottles blowing machine two Cavity how to connect wire Machine de soufflage pour bouteilles en PET ,please email via jackdu999@yahoo.com or browse our website http://penglaichina.com.
