Accessory equipments

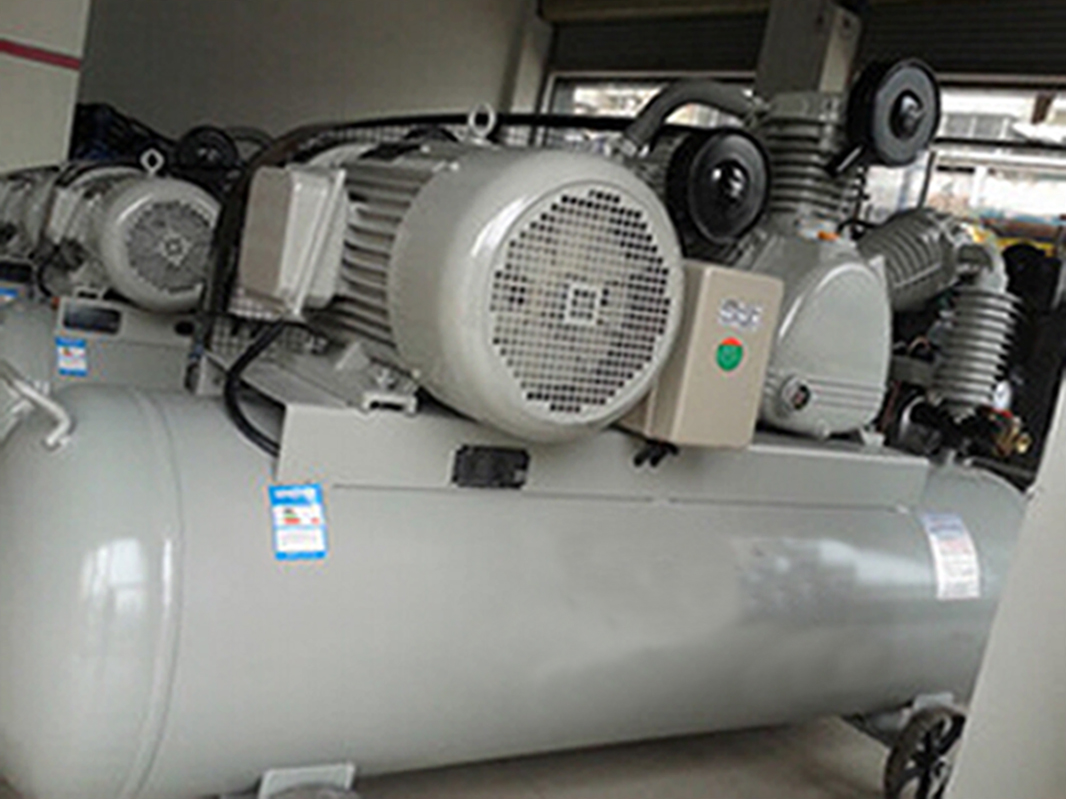

Oil free air-compressor air pump compressed air generator less noisy portable accessory equipments f

Oil free air-compressor air pump compressed air generator less noisy portable accessory equipments for filling capping labeling packaging machinery

is often used in the industry like food pharmaceutical cosmetic packaging . as an accessory equipment for assisting the working from filling capping labeling

packaging machinery .

The Features of Oil free air compressor :

1.100% free of oil, Suitable for medical treatment,foodstuff,hemical,electric,paint and the other high precision industries field.

2.Adoption new design valve plate to increase the efficiency of inlet and save the energy.

3.using hermetic crank case and bearing to achiev the zero pollution,

4.High strength,high precision heat and abrasion resistance bearing used to prolong the using life.

5.Using special piston ring with best heat and abrasion resistance
 to guarantee the replcement period tobe over 5000 hours.

6.To save the charge of after-treatment of compressed air.

Technical Data(more compressors are available by order)



Model	Power  KW/HP	Discharge Volume  m3/min	Tank Capacity  L	Working Pressure  kg/cm2	BorexNo.of Cylinder	MAX.RPM	Dimensions  LxWxH (cm)
OL-80	4/5	0.45	160	7	80X3	800	151X62X109
OL-90	5.5/7.5	0.6	160	7	90X3	950	151X62X109
OL-100	7.5/10	0.9	260	7	100X3	800	160X77X130
OL-150	11/15	1.36	300	7	90X6	950	181X77X130
OL-200	15/20	2	300	7	100X6	900	181X77X130

Production process for oil free air compressor for filling capping labeling machinery working :

Wooden case crate packaging for air compressor silent oil free

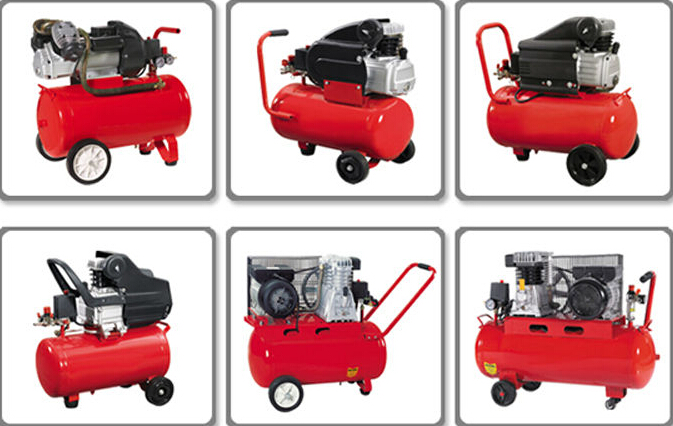

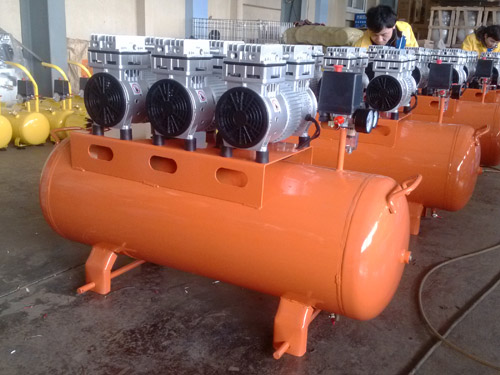

Different models of Air compressors in stock

PENGLAI INDUSTRIAL CORPORATION LIMITED
