Weed extract oil filling press&screw capping machine rotary 2 in one carts liquid CBD filler capper

The machine,model YX-90G Vape oil Filling Machine Small bottles oil cartridge filler capper line automated equipment Máquina de llenado aceite,Adopts micro-computer control system the mainframe running speed is frequency conversion.
Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

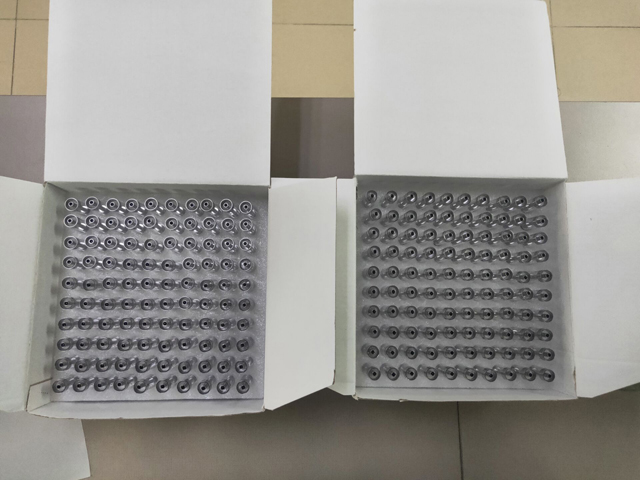

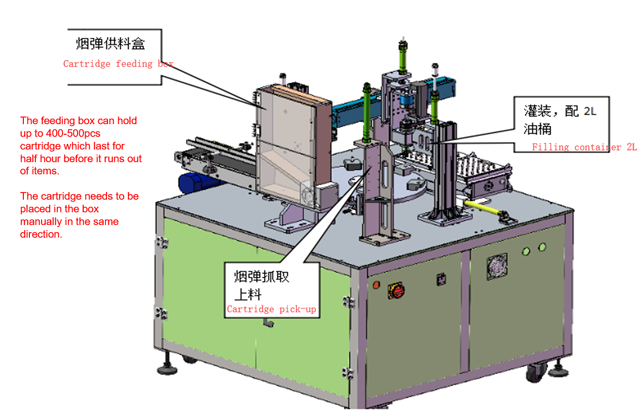

The machine updated based on the version manufactured several years ago is characteristic with the pick-up system with stirofoam tray instead of the one adopted before with bowl feeding system; The
biggest advantage of pick-up system avoids the scratch on the surface of carts during feeding and filling compared with the older version.

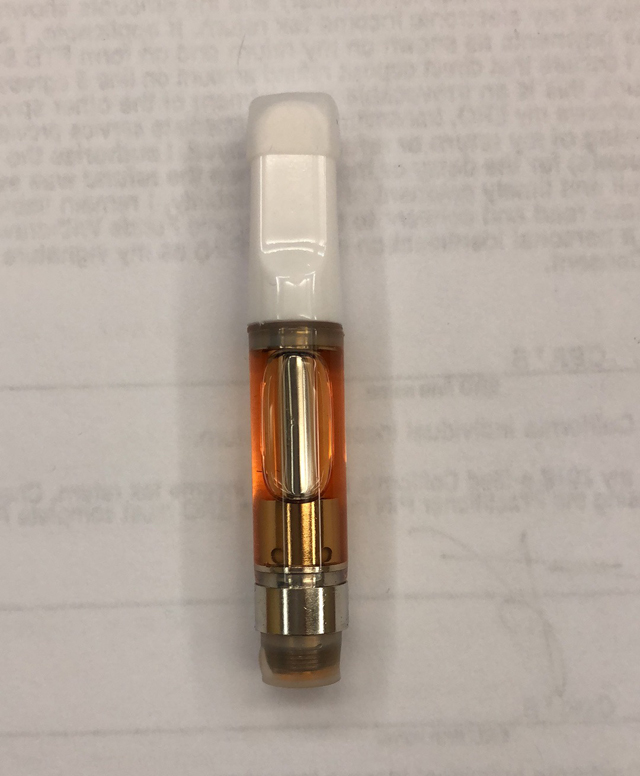

Application: Bottle/E cigarette cartridge dropper, disposable ehookha,ecigs oil inject/filling

Teach Pendant system setting,visual convenient operation ,accurate filling level.
Advantages:
1.Compatible with Full-series of BUD Atomizers,
2.Can Achieve Automatic Process of Feeding+ Filling + Plugging + Mouthpiece Installation + Blanking
3.Effectively Save Manufacturing Cost Over 80%.
basic parameter of model YX-90G E liquid Filling Machine Small bottles oil cartridge filler capper line automated equipment Máquina de llenado aceite:

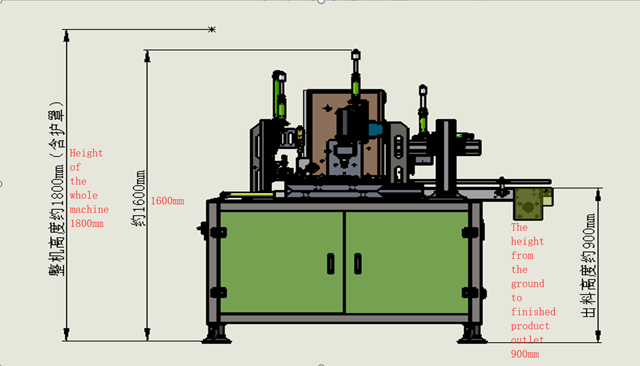

Device Main Body Size L800mmXW850mmXH1450mm
Weight 380KG
Max Capacity of Oil Bucket 2L
Productivity 500-1500 PCS/H
Working Voltage 90V-264V
Required Air Pressure 0.70Mpa

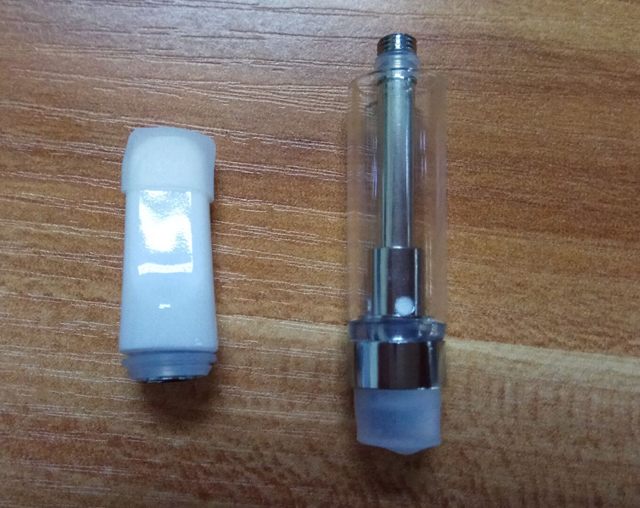

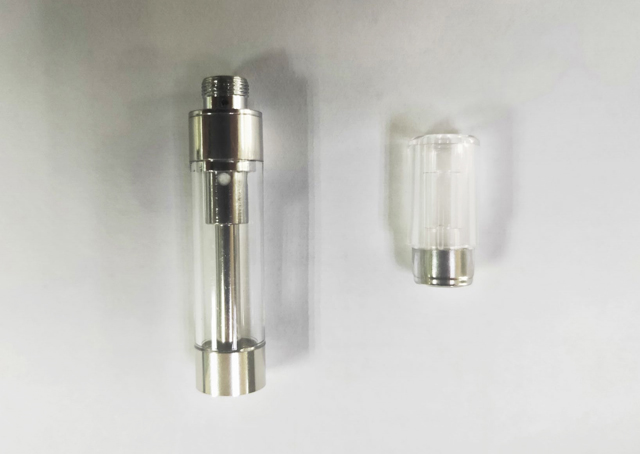

Suitable for 0.3~1.0ml BUD Plastic Series Atomizers(Shift by changing filling gabarit)

Samples&Packaging & Shipping:

Packaging Details:This machine needs wooden box for flight, over 150mm foam between machine and case are required, stick "up" label (according to the standard of import and export requirement).

Minimum Order Quantity: 1 Set/Sets

Port: Shenzhen, Hong Kong,Guangzhou

Delivery Time: 15~20  WorkDays after Payment

Payment Terms: T/T, Western Union PayPal
