Vertical large bags packing machine automatic with Z-type elevator materials loading VFFS rice granu

Vertical large bags packing machine automatic with Z-type elevator materials loading VFFS rice granu

This machine packing large bags for granules model YX-500 is a large, vertical, three sides sealing, pillow shaped bags, intermittent packaging machine. Can be completed automatically bag making, measuring, filling, sealing, cutting, counting, lot number printing process.

The measurement of volumetric method, for particles smaller than 80 objective granular material of big bag packing. All parts in contact with the device are made of stainless steel and non-toxic wear-resistant plastic, to meet the requirements of the food and pharmaceutical packaging.

Suitable for packaging of granular material that is easy flowing or good flow properties, such as monosodium glutamate, solid beverage, sugar, glucose, feed, medicine, solid Coffee etc..

Packing speed can be within the rated range step less speed regulation.

The bag length adjustment: microcomputer using coaxial photoelectric coding control, set the bag length by microcomputer, with the bag length accurately, convenient adjustment, maintenance simple, reliable work.

Heat sealing dual temperature control: temperature by intelligent temperature controller can be set in advance, accurate temperature control, suitable for various packing materials, good heat balance to ensure the sealing quality.

Photoelectric automatic positioning system: using optical positioning technology unique, for printed color packaging materials, can guarantee the integrity of the pattern making.

Filling quantity of step less adjustment: the coaxial photoelectric coding, by using the microcomputer control to realize step less adjustment within the rated range. Has the advantages of simple structure, accurate control, stable and reliable.

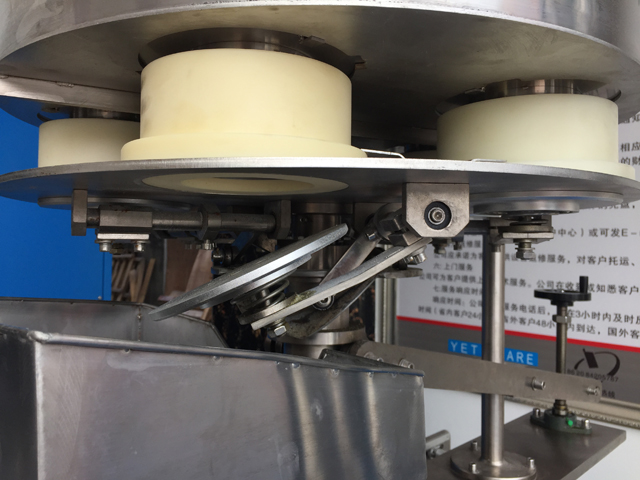

Metering device:

Rotary cup type metering &different measuring way for different granules&powder

cups for meatering.jpg

cups for meatering.jpg



Features:

1. Equipped with safety protection, comply with firms safety management requirements.

2. The packing machine use PLC control with stable, reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting, finished in one operation.

3. PLC Control with touch panel step by Step Instruction.

4. Pulling belt film draw down system is controlled by servo motor, high precision orientation, size more nicety.

5. Stainless steel 304 contact parts.

6. External film releasing mechanism: simpler and easier installation of packing film.

7. Adjustment of bag deviation just needed to be control the touch screen. Operation is very simple.

8. Close down type mechanism, defending powder into inside of machine.

9. Make pillow bags and hanging bags in terms of customers different requirements.

10. It can finished all processes bag forming, bag sealing, packaging, date printing automatically.

Technical parameters of vertical packing machine VFFS Packaging equipment

Zig zag packing machines.jpg

packing machines VFFS for beans.jpg

packing machines VFFS for beans.jpg

Model YX-500 Vertical Form-Fill-Seal Machine
Packing speed Max 50bags/min
Bag-making size (L)80-350mm      (W)80-250mm
Film material BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, NY/PE, PET/PE etc.
Filling range Max 2000ml
Max packing film width 520mm
Film thickness 0.04-0.08mm
Air consumption 0.8Mpa  0.40m3/min
Total power/ voltage 3KW/220V  50-60HZ
Outside size (L)1430x(W)1200x(H)1700mm
Gross weight 680Kg
Feeding Hopper

50Liter

 Configuration for packing machines vertical large bag packaging model YX-500

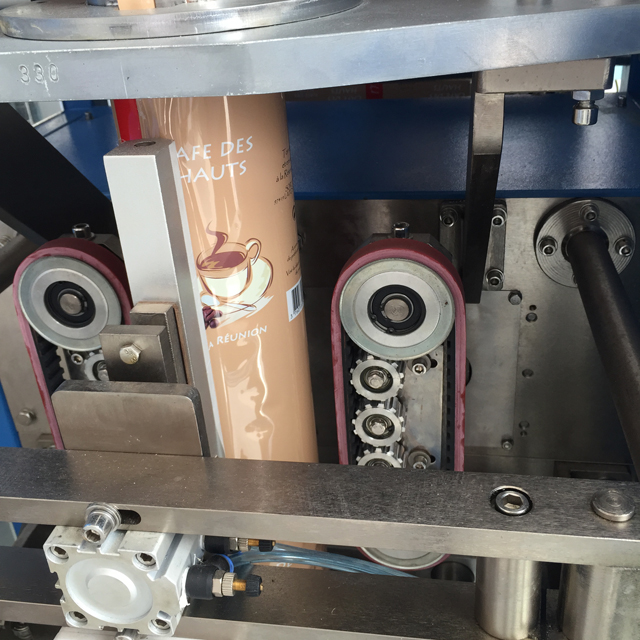

illustration for packing machines.jpg

packing machine for beans.jpg

Sequence NO.


Name of fitting

Country of origin

Brand

1

Touch screen

Taiwan

WEINVIEW

2

PLC



Japan

Mitsubishi

3

Servo motor including drive

Japan

Panasonic

4

Color standard sensor

Electronic eye



China

Autonics

5

Temperature control meter

China

Yudian

6

Horizontal sealing cylinder

Taiwan

Airtac

7

Vertical sealing with guide bar cylinder

Taiwan

Airtac

8

Cutter thin cylinder

Taiwan

Airtac

9

Push film cylinder

Taiwan

Airtac

10

Two couplet

Taiwan

Airtac

11

Value with gauge



Taiwan

Airtac

12

Electromagnetic valve with disc



Taiwan

MINDMAN

13

Inflatable solenoid valves



Taiwan

MINDMAN

14

Printer

China

XIAMEN TANE

15

Solid state relays

TAI WAN

Schneider

16

Among the relay

Japan

IDEC

17

Switching power supply

Taiwan

YANGJI

18

Stop switch

Japan

IDEC

Spare parts for packing machines model YX-500

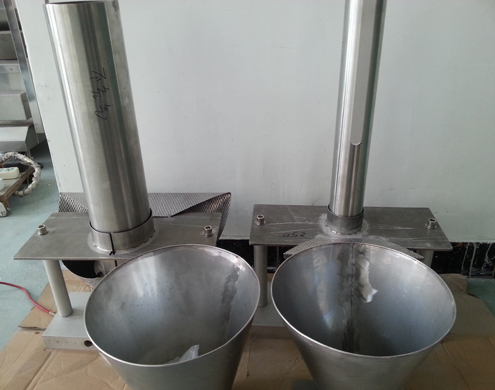

Bag formers from vertical packing machine

bag former for salt packing.jpg

Conveyor belt for outputing final product

illustration for packing machines.jpg

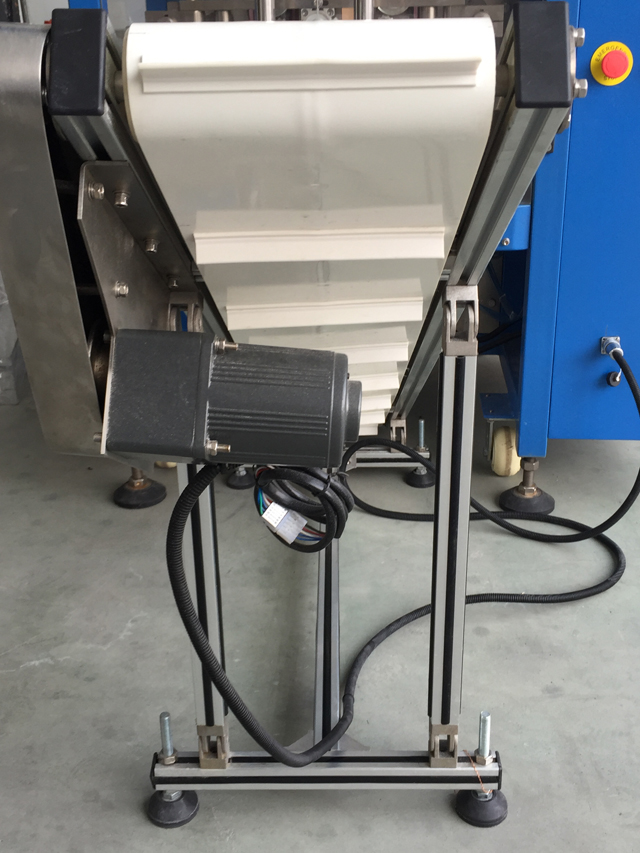

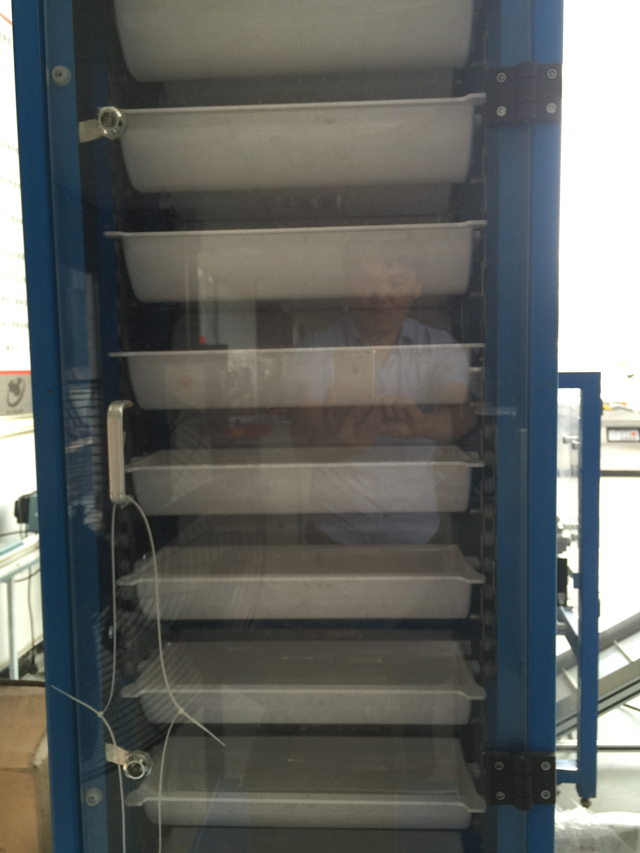

Cups for loading materials through Z-type elevator

cups for meatering.jpg

Loading hopper for feeding materials

loading hopper.jpg

Feeding hopper from the main body of packing machine VFFS

illustration for packing machines.jpg

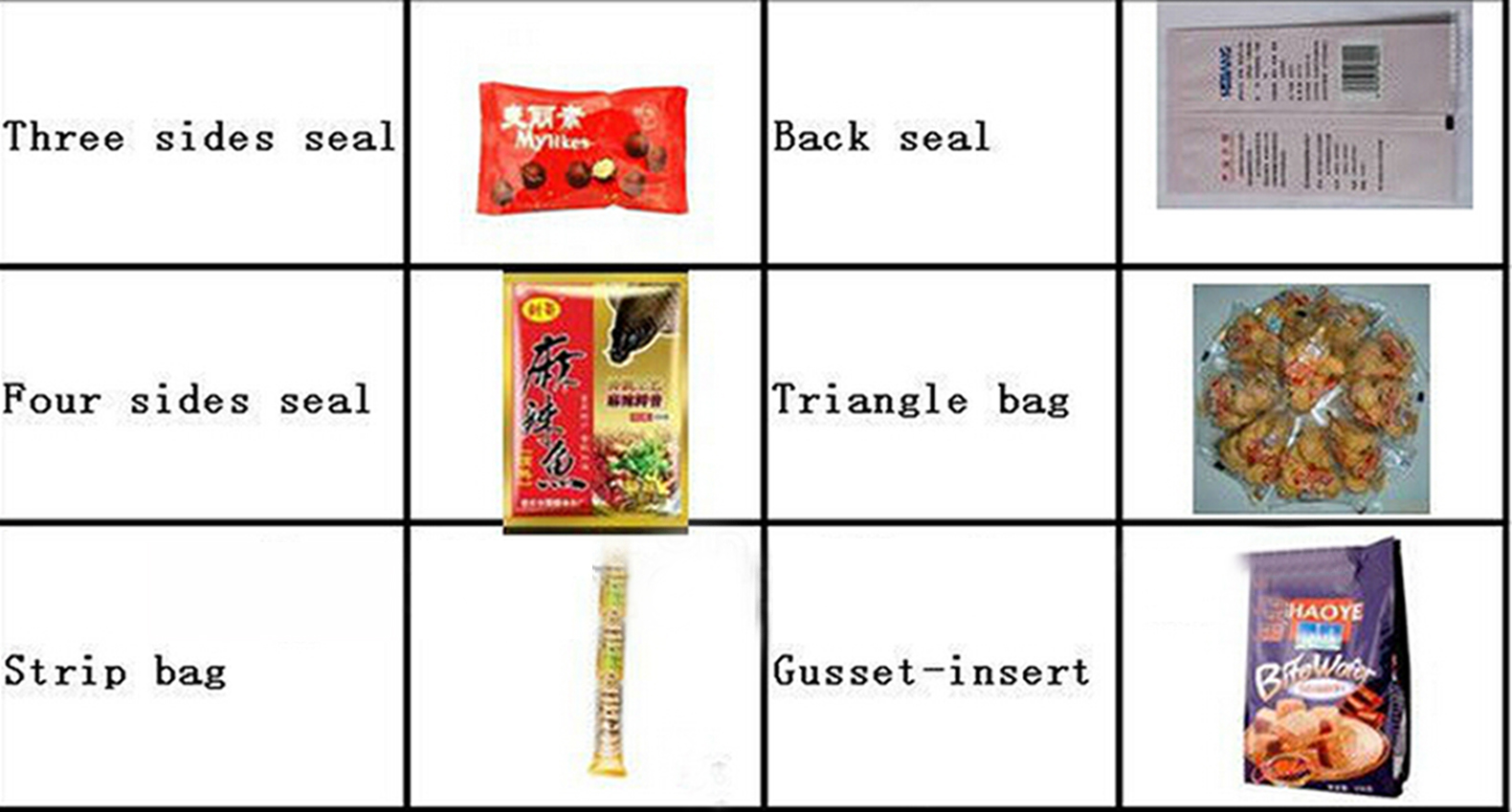

Sealing way for different requirement Bags sealing type

salt packing for Mr Yap granule.jpg

Final products from the materials and VFFS packaging machinery YX series PENGLAI brand

salt packing for Mr Yap granule.jpg

salt packing for Mr Yap granule.jpg

After sales service for Model model YX-500 VFFS packaging machinery large bags packing equipment for salt beans rice etc

contract business spirit from PENGLAI.jpg

Guarantee: for all the machine, it claims three years for guarantee.

(Excluded from the warranty are problems due to accidents, misuse ,

misapplication, storage damage, negligence,

or modification to the Equipment or its components.

ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,

if you need,our technician will go to your place to install and

test the machine and also training your worker to operating the machine

(The time of train depend on you worker).

The expenses (air ticket ,food , hotel,the travelling fee on your country)

should be on your account and you need  paid for the technician USD50

per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,

our technician will go to your place to fixed the machine

as soon as possible. The cost should be in your account.(as above).
