New Zealand Regular customer another order for model YX-006 plastic tubes ultrasonic sealing machine

Thanks for our customer Mr Sam from NZ who ordered another machine ultrasonic sealing machine from us,another order after powder filling machine model YX-F02.

after confirming the payment from our buyer we soon finished manufacturing of sealing machine model YX-006 .
After checking the videos&pictures for the machine
our friend is rather satisfied at our sealing machine quality.

As below there is the basic information for this sucessful international transaction:

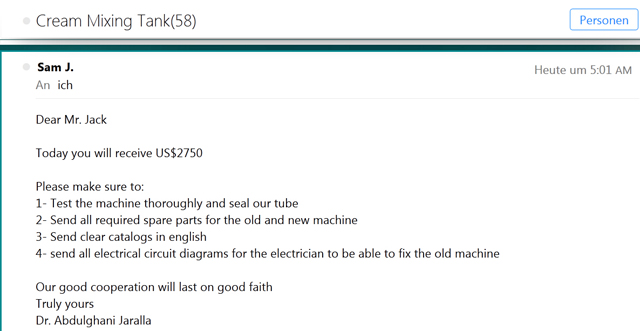

Payment proof for model YX-006 ultrasounic tubes sealer:

Tubes samples sent from customer New zealand:

Testing run of video for model YX-006 ultrasonic tubes sealing machine:

Wooden case packing before shipping sealing machine to New zealand buyer:

As below there is basic information for model YX-006 ultrasound tubes sealing machine:

Model YX-006 Ultrasonic Plastic Tube Sealer can weld the tail of soft tube. It's wildly used in cosmetic, toothpaste, commodity, medicine,

chemical, and other types of tube tail sealing.

The model YX-006 Ultrasound tubes sealer machine is the products latest developed from our factory .Compared with the model YX-005

which is also one of the best-selling sealing machine from china manufacturer ,the model YX-006 is prior

in advantage in stability opeation/ easier maintenance as well as appeance with PLC touch screen controlling system .

As below is the latest sealing machine stainless steel ultrasonic tubes sealing machines model YX-006

►drawing of Ultrasonic Tube Sealer model YX-005 With button controlling system old version sealing machine:



Ultrasonic tubes sealing machine model YX-006 Added with protective chamber

►Special  Function of Ultrasonic Tube Sealer

►Main features

1. Easy to operate and maintain.

2.Automatic positioning, welding, cutting and trimming, printing code in one time.
3.. Stainless steel machine body, strong and beautiful,

4,The machine small enough to be put on worktable.

5. Sealing mould can be customized according to customer requirements. Can seal many size of tubes.
6. Ultrasonic Sealing Machine power source for the pneumatic, working steady, not easy to damage, customers can rest assured use.
7. Ultrasonic frequency can meet international standard, no harmful to human being or environment

8. Ultrasonic Tube Sealer can be work in time, not need wait the heat time .

5.  Ultrasonic Tube Sealer Package :

►Spare parts list from Model YX-006 Ultrasonic tubes sealing machine :

►Basic parameter of model YX-006 Plastic tubes sealer equipment semi automatic:

Items	Parameter
Model	YX-006
Frequency:	20Khz
Ultrasonic power:	1500W
Power Voltage	AC220V/50Hz
Output power	1200W
Length of tube	50-250mm
sealing Dia	10-80 mm
Time adjust:	Electronic adjust
N.W/G.W	110KGS/126KGS
H.S code:	8515800090
Pack size	1050×760×790mm(0.33 CBM)
Pack	Plywood wooden case

Spare parts for model YX-006 ultrasound sealing machines:

Application: toothpaste, cosmetics, medicines, food, industrial supplies,





►Feedback from customers worldwide

►FAQ about ultrasonic tubes sealing machine model YX-006

1.If i order this machine , how to operation it ?

Answer:  Ultrasonic Tube Sealer  is easy and simple operation, you just connect the electricity , and air compress machine

2.About Guarantee:

Answer: one year. The supplier can replace only the elements that are imperfect for material or handwork. Replacement is free.

All imperfect elements have to be delivered within 12 months (carriage paid). Guarantee excludes every worn or torn parts.

Replacement handwork is excluded and it will be done by the buyer.

The supplier is not responsible for any rewards for, damages or last earnings met by buyer.

Guarantee is not valid if the machine is used the wrong way or it is not serviced as shown in our technical handbook.

3.Do you have other model ?

Answer: Of course . we have semi-automatic type (YX-006) and Automatic filling and sealing machine for you .

Please view our Home page .

4.What is the power supply?

Answer : we can design according to your inquiry . usually it is :220V/ 1 phase . 110V/single phase.

5.Is this machine need mould ?

Answer: yes it need mould . The machine will one pc welding mould free in charge.

►Shipping &delivery for PENGLAI SEALING Machines
