20L Bottles Water gallon poly bag wrapping packaging machine automatic wrapper packer

The 20L water bottles packing machine is mainly an equipment designed for the automatic bag packing of the finished water in the 5 gallon bottle production line
to keep the barrel clean and reduce wear. The gallon bottle can enter and exit the machine without the need for personnel to complete the whole process,
The packaging efficiency is high, mechanized operation reduces labor costs; the packaging speed can reach max 2200BPH,
which can save two to four workers and greatly reduce bag costs.

Features of packaging machine 5 gallon water packer:
High speed,high production capacity;

Wide application scope,can be connected with other machines,also can be used as a single machine;

Fully automatic operation , after the bottles finish sealing ,it will auto goes into the bagging machine ,the machine make bags automatically by the film , the film bag protect the 5gallon bottles from the dust.

main parameters of 5gallon bottle packing machine


Production capacity 1000-2000BPH
Applicable bottle 3-5 Gallon
Applicable film
L680-720mm Tk0.006-0.015mm
Roll diameter 350mm
Bottle feeding motor 0.37KW speed ratio:1:20
Film feeding motor
0.18KW speed ratio:1:30
Bottle exit motor 0.18KW speed ratio:1:15
Host cutter heating rod 0.12kw *2pcs
Auxiliary cutter heating rod
0.12kw *2pcs
Total Power 2.5kw
Air consumption
0.6m³/Min 6kg/cm
Conveyor dynamic load
20KG/0.5m/s
Size 2300*1400*1600MM
conveyor belt is 600mm above the ground
Weight 680KG

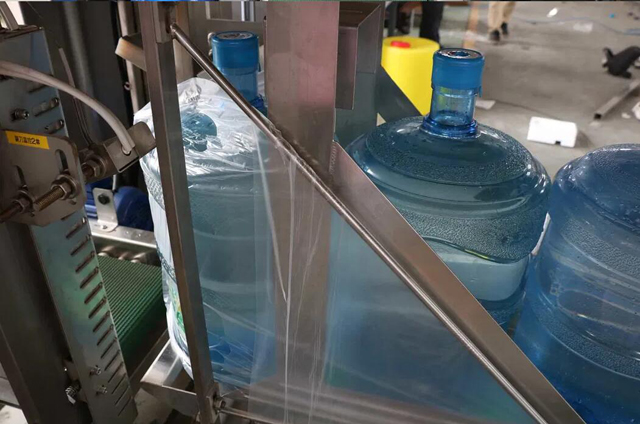

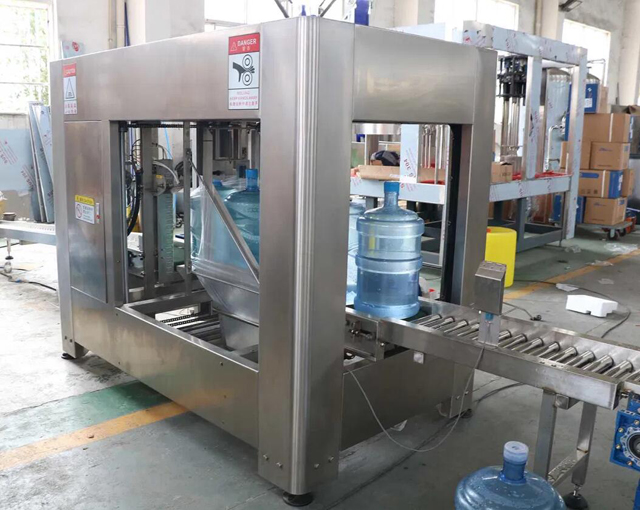

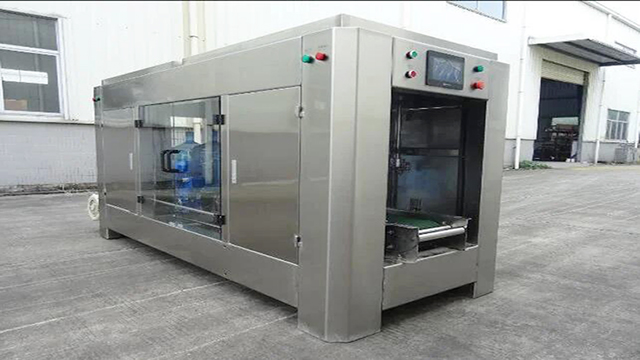

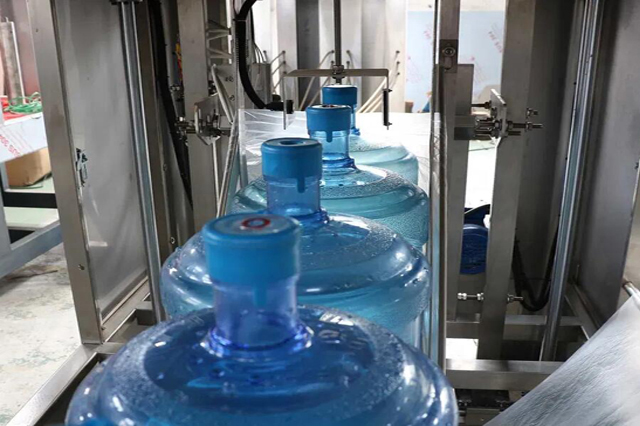

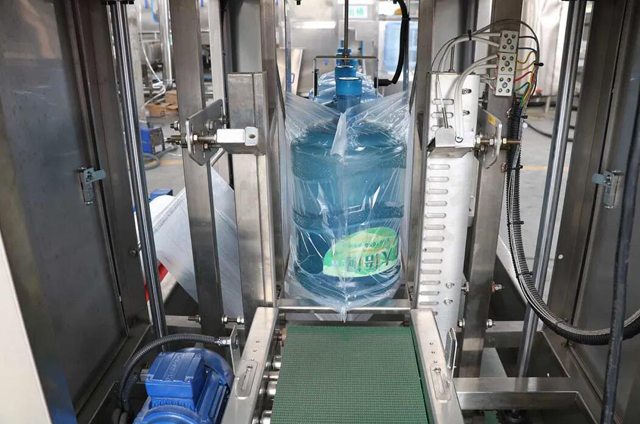

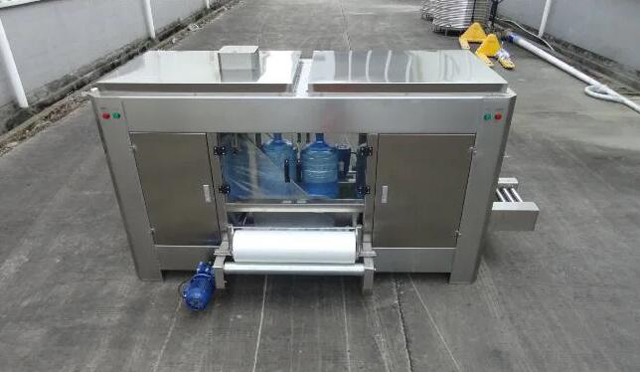

More clear pictures for 5 gallon water bottles packing machine:

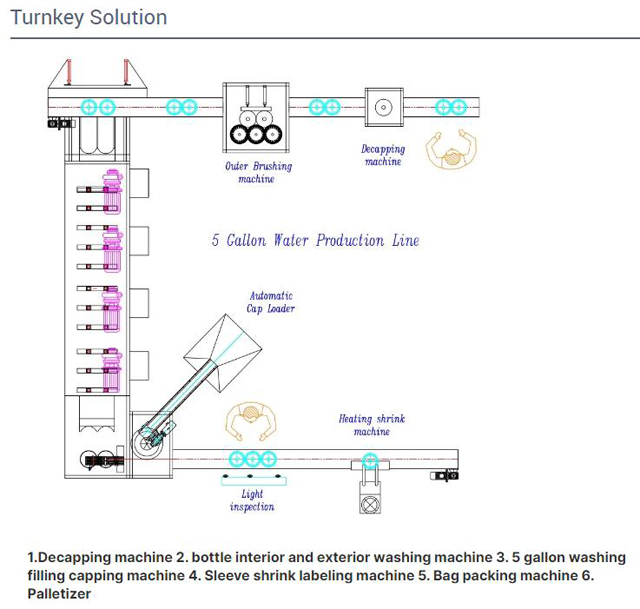

Turkey solution (which you can find where the gallon bags packing machine is stationed)

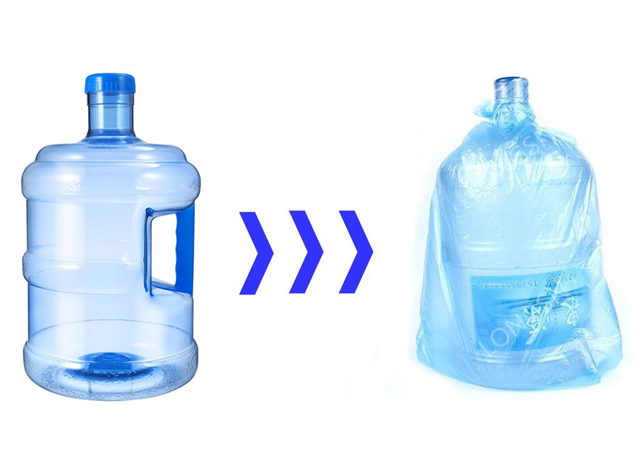

fold film -bottle enter machine-machine sleeve film on bottles -> cut and shrink->bag finished wrapped on the bottles

Main configuration

plc    mitsubishi
touch screen    china taiwan brand
pneumatic     airtac

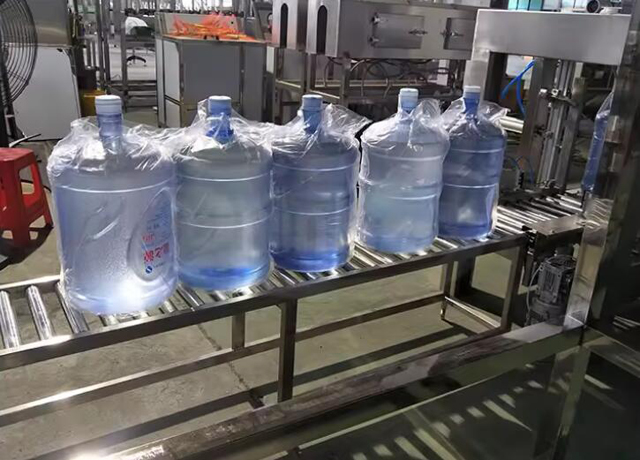

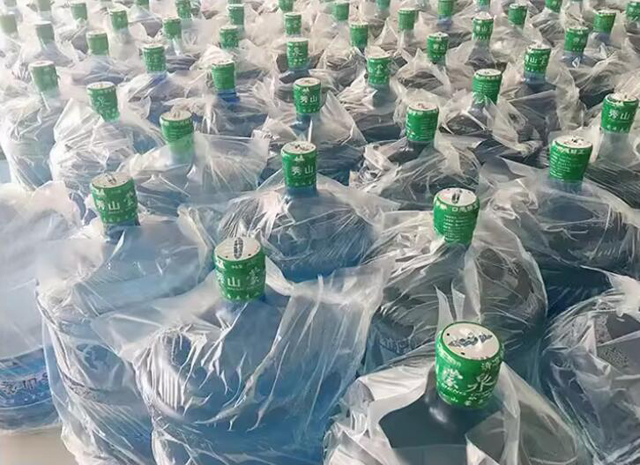

Finished samples after bags wrapping and packaging:

Wooden case packaging for shipping the gallon packer &others:
